knife Cutter Mower settings:
The settings of the knife cutter Mowers that the machine user must perform are:
Cutting height adjustment:
Adjusting the cutting height is done by changing the position of the shoe.

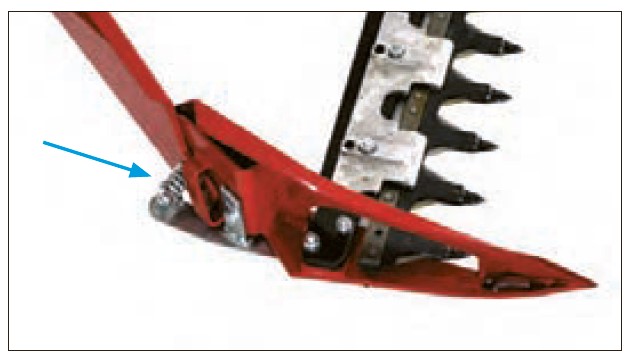

Adjusting the cutting height by changing the position of the shoe and shoe in the knife cutter mower
Adjustment of cutting edge float:
Adjusting the knife cutter buoyancy is done by the tension of a spring.

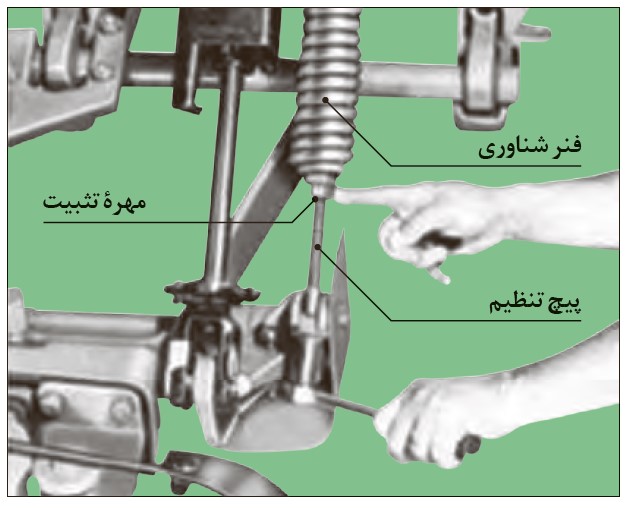

Adjustment of the knife cutter Mower float spring
Adjustment of knife cutter lead:
Since the end of the cutting shoulder is free, during harvesting, due to the resistance of the product, the knife cutter is pushed back, to compensate for this displacement, it is necessary to slightly cut the outer end of the cutting knife cutter before starting the harvest when the mower is not working. be taken forward. The cutting edge lead is usually 20mm per meter of cutting edge length.

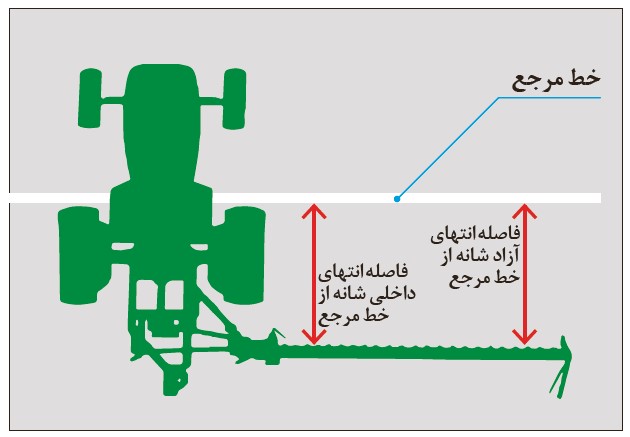

Measuring cutting knife cutter priority in knife cutter mower

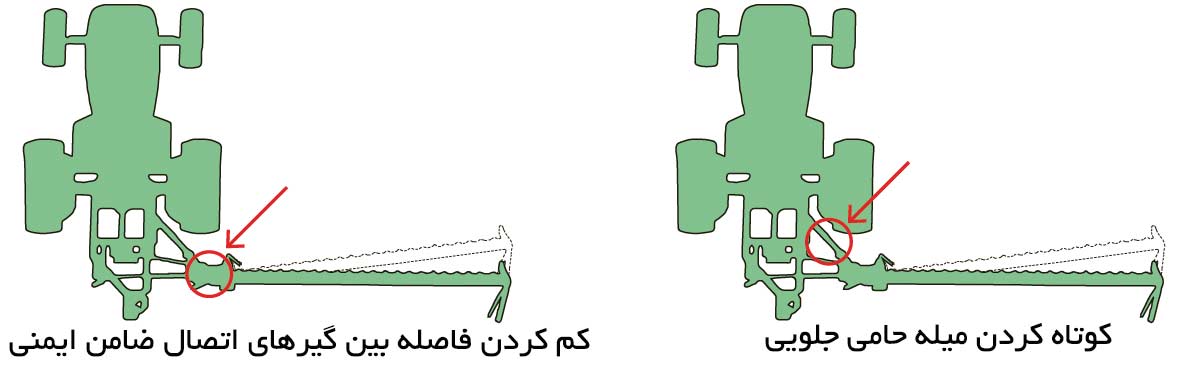

Depending on the type of mower, one of the following methods should be used to push the outer end of the shoulder forward.
- Shortening the front support bar
- Reducing the distance between the clamps of the safety fuse
- Extending the rear support rod
Adjustment of cutting shoulder tendency:
The cutting shoulder should usually move parallel to the ground during work, but when the product is tangled or lying, it is better to tilt the fingertips slightly downwards so that before picking, the fingertips can penetrate between them and lift it off the ground.
In rocky areas, the tips of the fingers should be inclined upwards to reduce the possibility of damage to the blade and fingers.
The tendency of the tip of the finger towards the ground is usually done by special connections or by changing the length of the middle arm of the tractor.

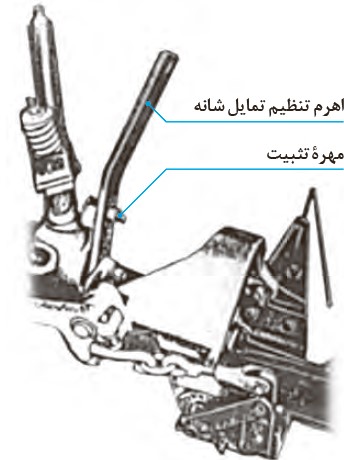

The adjustment lever of the inclination of the cutting knife in the knife cutter mower
Adjusting the page and the rower bar:
The plate and rod can be adjusted according to the height of the product.
Note: Other settings of the machine include adjusting the blade adjustment, adjusting the blade strap, adjusting the blade holding clip, adjusting the shoulder, adjusting the safety latch, and adjusting the fingers.
Steps to perform knife cutter Mower adjustment
1- Measure the advance of the cutting edge.
2- Adjust the advance of the cutting edge.
3- Change the cutting height.
4- Change the inclination of the cutting shoulder.
The blades of the mowers are very sharp and sharp, be careful not to place your fingers in the path of the blades.

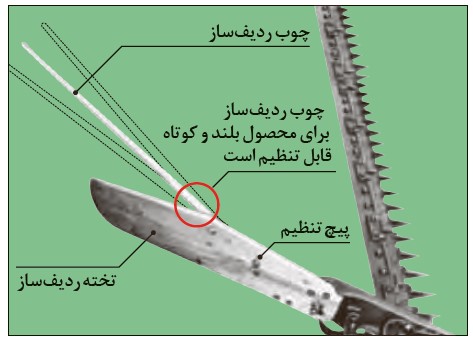

Adjusting the plate and rowing rod in the knife cutter Mower
